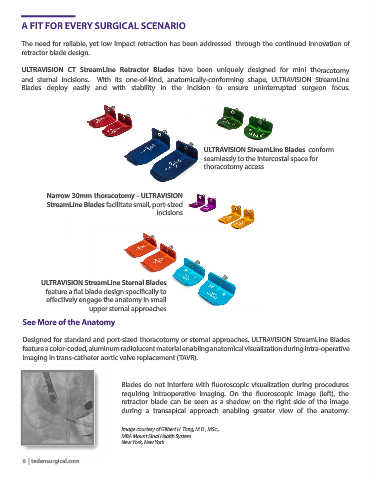

A FIT FOR EVERY SURGICAL SCENARIO

The need for reliable, yet low impact retraction has been addressed through the continued innovation of
retractor blade design.

ULTRAVISION CT StreamLine Retractor Blades have been uniquely designed for mini thoracotomy
and sternal incisions. With its one-of-kind, anatomically-conforming shape, ULTRAVISION StreamLine
Blades deploy easily and with stability in the incision to ensure uninterrupted surgeon focus.

ULTRAVISION StreamLine Blades conform
seamlessly to the intercostal space for
thoracotomy access

Narrow 30mm thoracotomy - ULTRAVISION
StreamLine Blades facilitate small, port-sized
incisions

ULTRAVISION StreamLine Sternal Blades
feature a flat blade design specifically to
effectively engage the anatomy in small
upper sternal approaches
See More of the Anatomy

Designed for standard and port-sized thoracotomy or sternal approaches, ULTRAVISION StreamLine Blades
feature a color-coded, aluminum radiolucent material enabling anatomical visualization during intra-operative
imaging in trans-catheter aortic valve replacement (TAVR).

Blades do not interfere with fluoroscopic visualization during procedures
requiring intraoperative imaging. On the fluoroscopic image (left), the
retractor blade can be seen as a shadow on the right side of the image
during a transapical approach enabling greater view of the anatomy.

Image courtesy of Gilbert H. Tang, M.D., MSc.,
MBA Mount Sinai Health System
New York, New York
